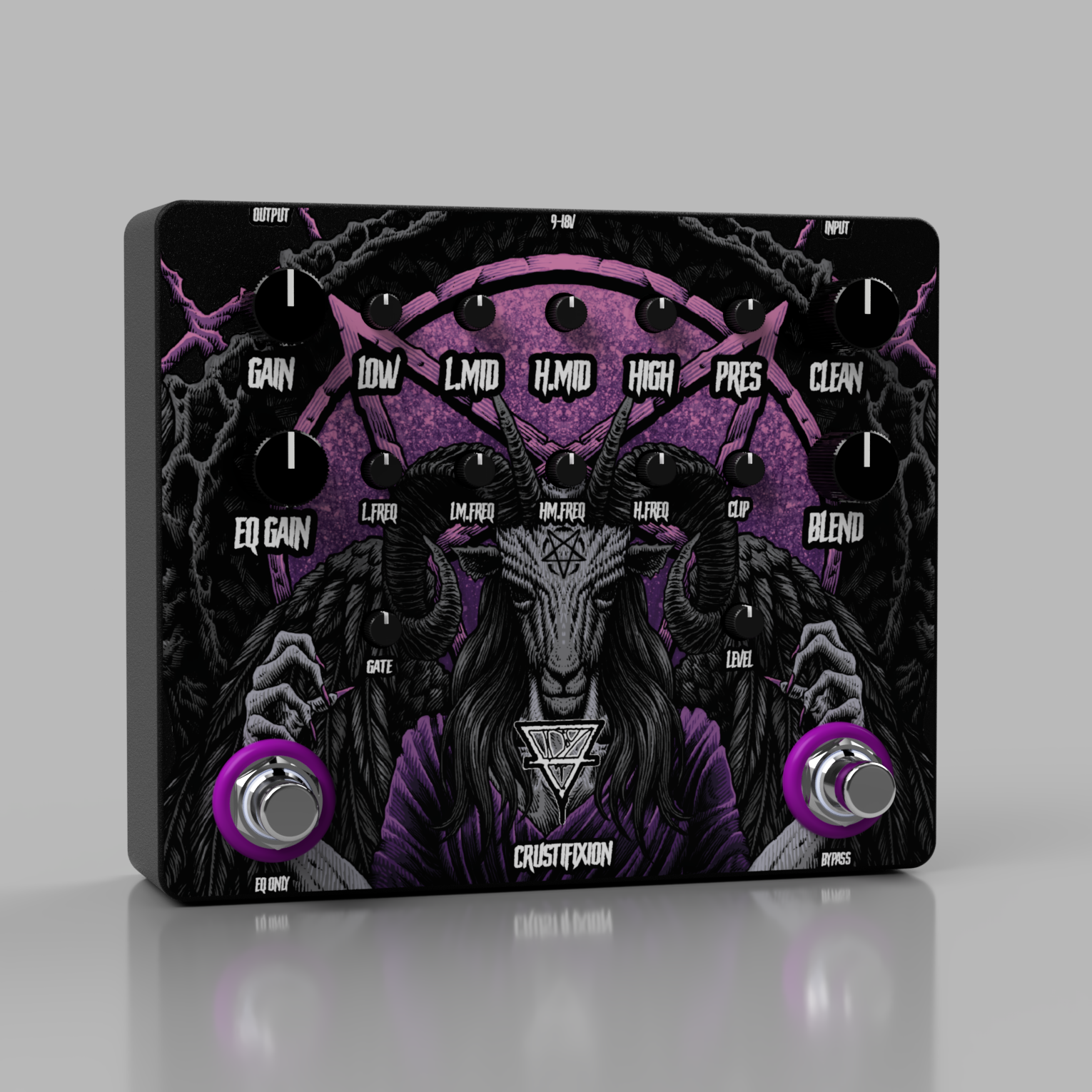

CRUSTIFIXION DLX
$265.00 USD
Description
. hm2 go brrrrrr.
Power Specifications
9-18VDC - CENTER NEGATIVE 9v for real nasty, 12v for the OG sound, 18v for smoother and higher headeoom. 18v recommended if youre normally running EQ Only. CONSUMPTION 17mASwitching System
TRUE BYPASS Soft click (1.1KGf) mechanical 3PDT.Controls
| Name | Location | Description |
|---|---|---|
| Level | External | Controls the output volume. |
| Blend | External | Mix between 100% buffered dry signal and 100% wet signal to bring back the dynamics of your clean signal. |
| Clean | External | Adjust the amount of gain on the dry signal side of the blend. |
| Gain | External | Controls the amount of distortion. |
| High | External | Cut/boost the treble frequencies. |
| Mid | External | Cut/boost the high mid frequencies. |
| L.Mid | External | Cut/boost the low mid frequencies. |
| Low | External | Cut/boost the bass frequencies. |
| Clip | External |
Adjust the amount of hard clipping saturation.
Stock HM2 is full CW. |
| EQ Only | External (footswitch) |
Toggle between the HM2 gain and a clean buffer to use the pedal as just an EQ platform.
Does not work if pedal is in bypass. |
| Gate | External |
Adjust the threshold of the coring circuit diodes for noise reduction.
This is a modification of the HM2 coring diodes, don't expect it to work as an intellegent gate such as Zuul or Decimator. |
| Frequency Center Shift | External |
Sweep the center frequency of each EQ band individually. M.Q adjust the Q width of the Mid Frequency.
Stock setting is ~noon. Q width is CW for narrow, CCW for wide. |
| Bypass LED Brightness | Internal |
Adjust overall brightness of front LED.
Default setting at minimum (full CCW). |
