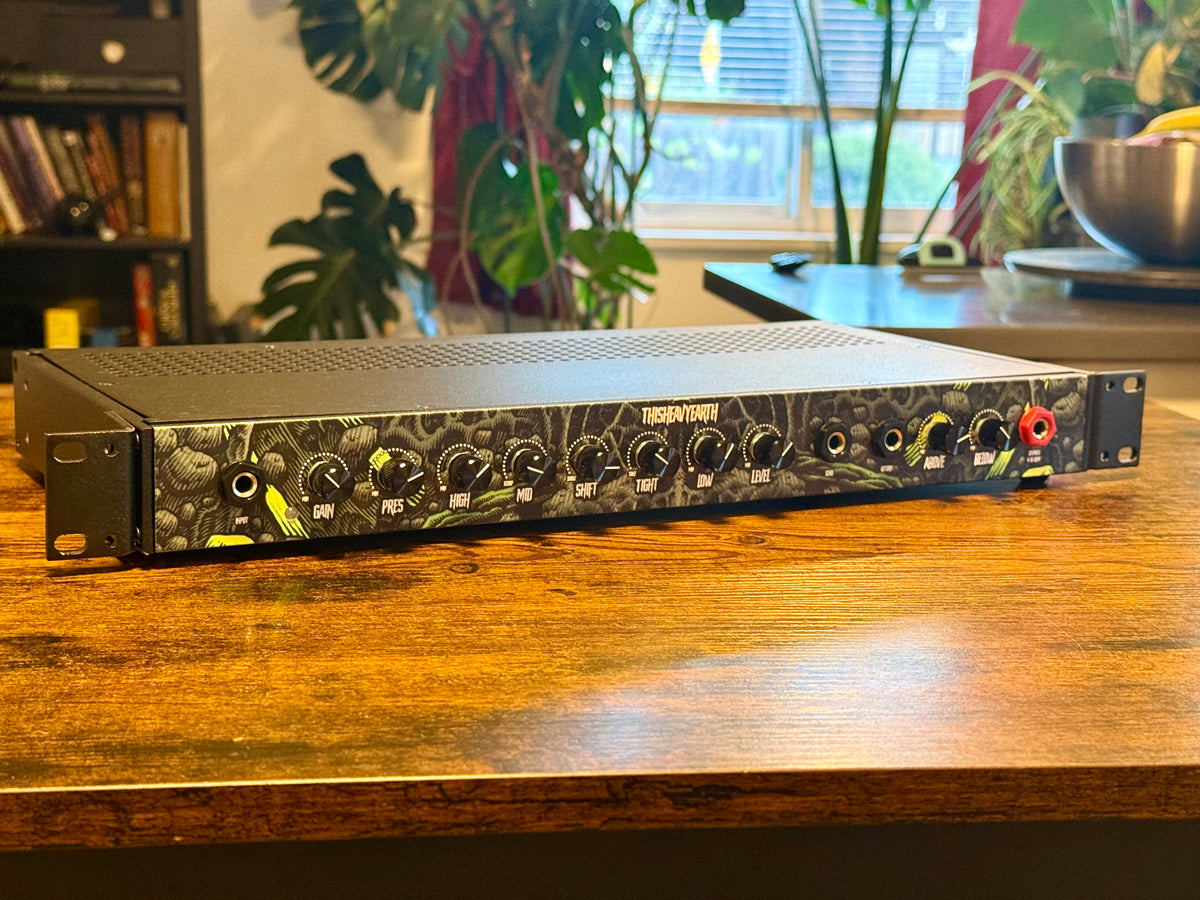

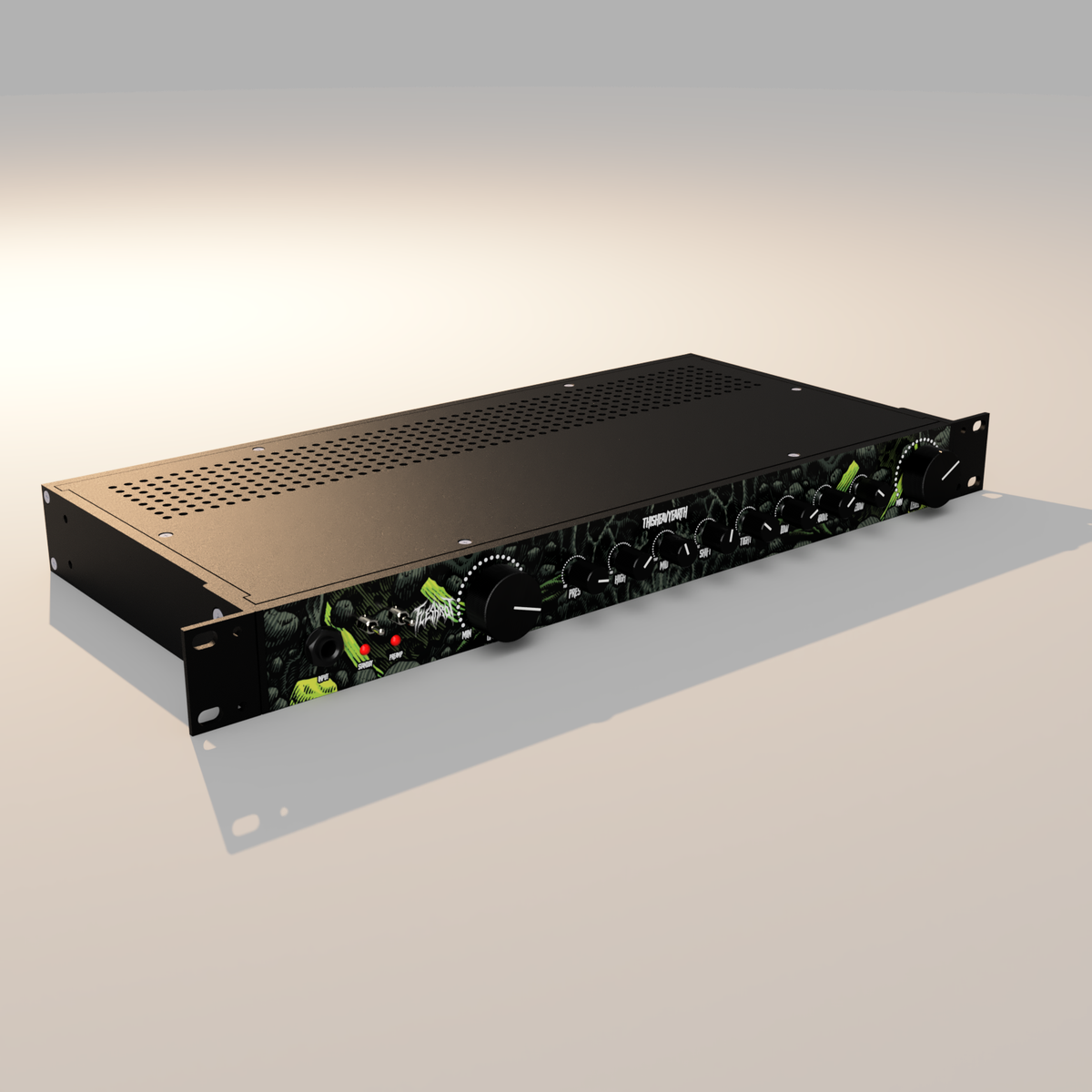

FLESHROT 200W Rack
$0.00 USD
Description
by popular request. 200W in a 1U rack. after i beat on the prototype enough, i'll look at release schedule.
Power Specifications
110-230VAC Universal voltage. Shipped with US style IEC plug. IEC plug by others for 230VSpecifications
Class D Power Amp: 200w@4ohm, 100w@8ohm, 50w@16ohm Dimensions: 12.75" x 7.25" x 6.5" Weight: ##Controls
| Name | Location | Description |
|---|---|---|
| Gain | Front | Controls the amount of distortion |
| Level | Front | Controls the output volume. |
| Tight | Front |
Tighten up that flub in your low end without thinning it out.
Full CCW for v1. |
| Low | Front | Cut/boost the bass frequencies. |
| Mid | Front | Adjust the amount of the mid scoop. |
| Shift | Front |
Adjust the center frequency of the mid scoop.
Noonish for v1. |
| High | Front | Cut/boost the high frequencies. |
| Pres[ence] | Front | Unbox that top end in higher frequencies. |
| Preamp | Front | use this toggle to disable all but the Level knob on the front creating a flat pedal platform for use with your other preamps. |
| Above | Front | Simulates a tube power amp presence control. |
| Below | Front | Simulates a tube power amp resonance control. |
| Standby | Front | A true standby, puts the amp into it's lowest power consumption and mutes output. |
| Preamp | Front | Defeat the FleshRot preamp and use the power section with your favorite preamp pedal. |

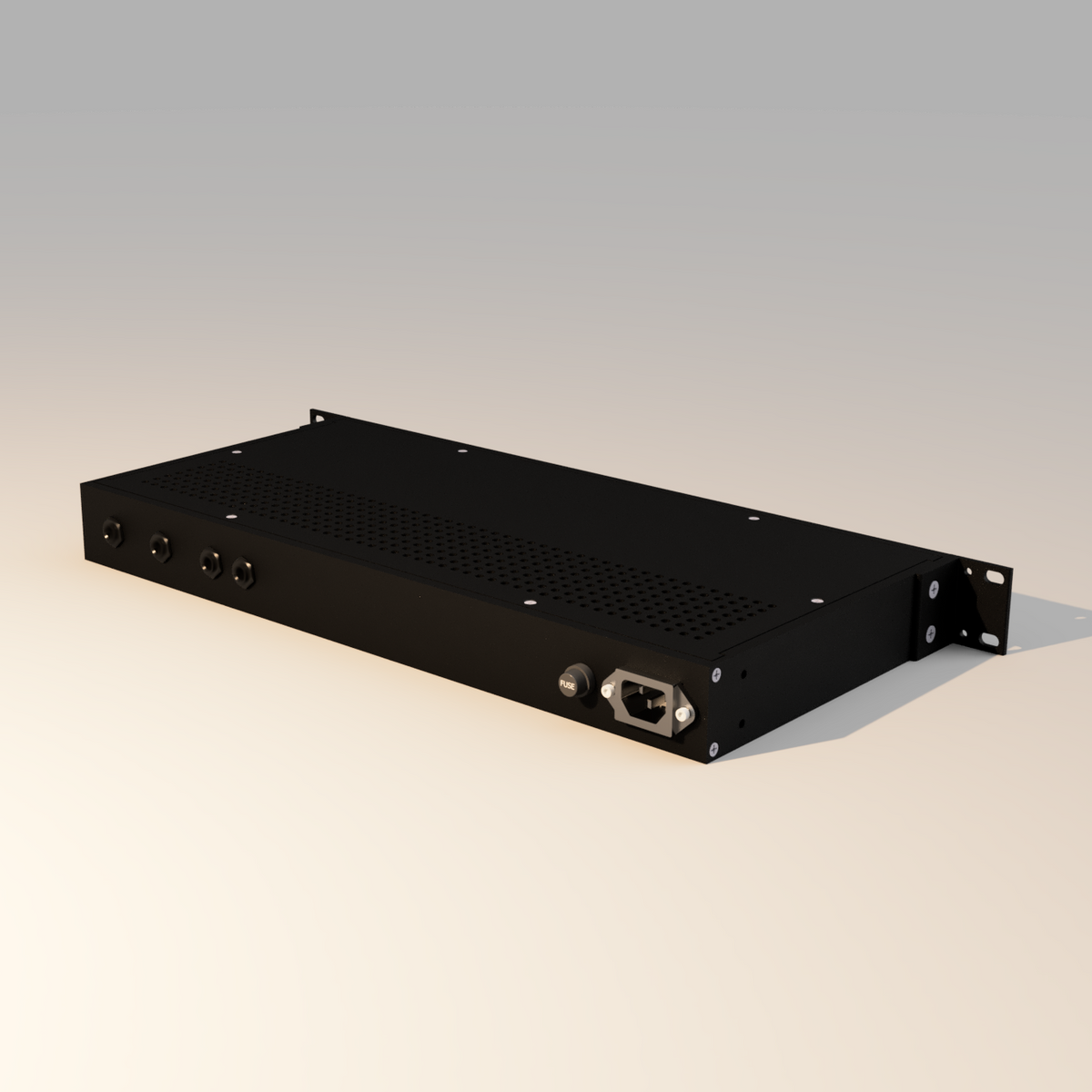

| FX Loop | Rear | Buffered FX Loop |
| Balanced Output | Rear | TRS output for going direct to interface. |
